The entire series adopts HT300 high-grade resin sand molding castings, which undergo annealing treatment and vibration aging treatment to eliminate internal stress.
| Technical Specification | |||||

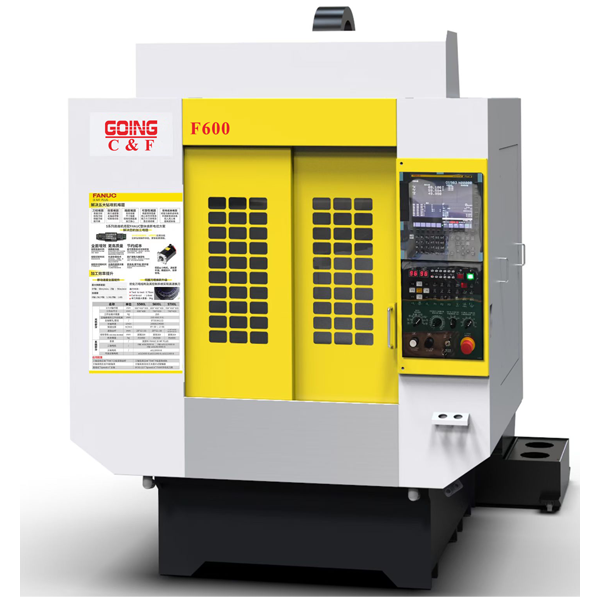

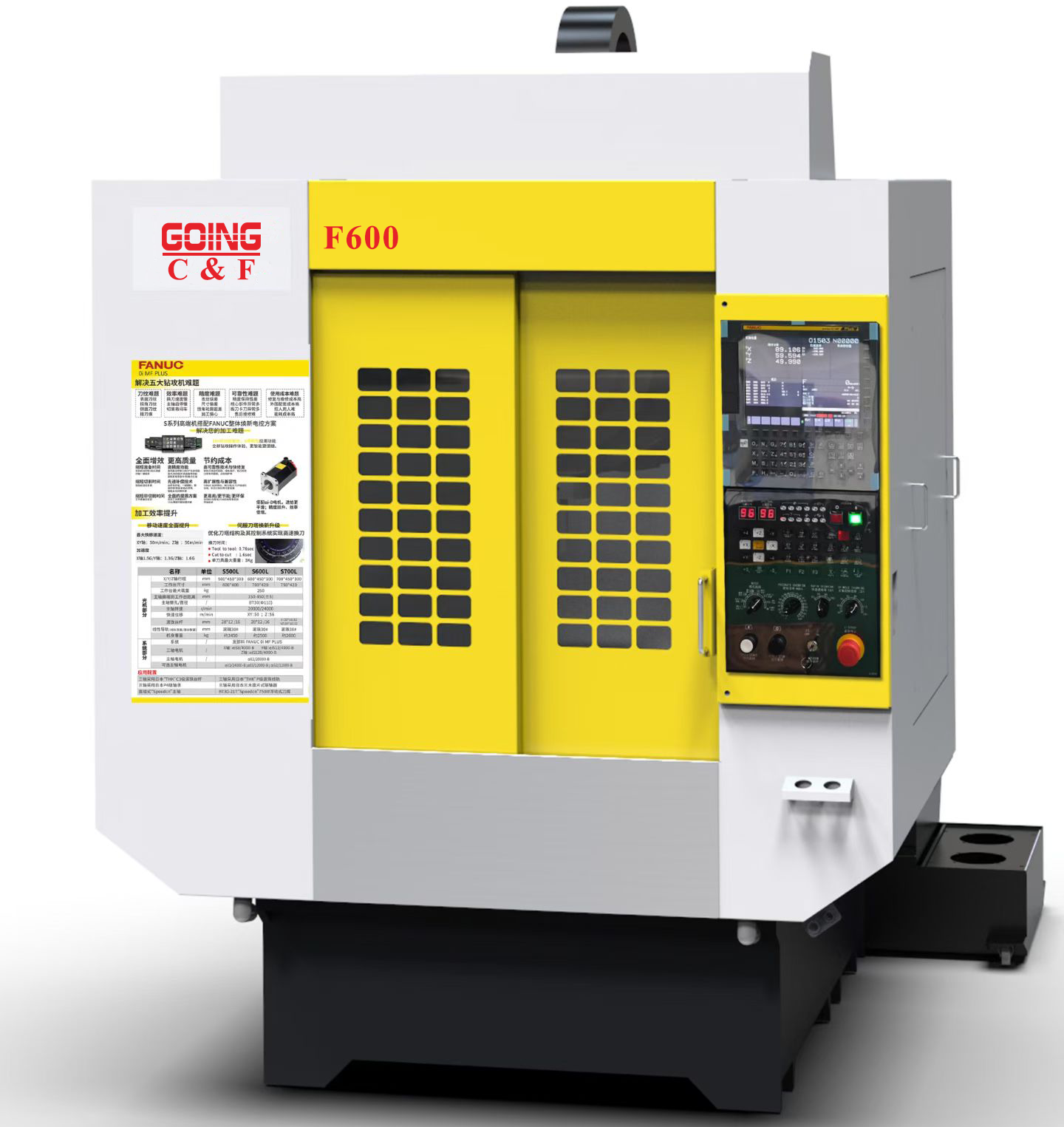

| Type of machine | Unit | F500 | F600 | F700 | |
| Stroke | X-axis travel (left and right) | mm | 500 | 600 | 700 |
| Y-axis travel (front and back) | mm | 450 | 450 | 450 | |
| Z-axis travel (up and down) | mm | 300 | 300 | 300 | |
| The distance from the nose end of the main shaft to the worktable surface | mm | 150-450（±5） | |||
| Workbench | Table size | mm | 600*400 | 700*400 | 750*420 |
| Maximum load-bearing capacity of the workbench | kg | 250 | |||
| Spindle | Spindle speed | rpm | 20000/24000 | ||
| Main shaft taper hole/diameter | / | BT30(Ø 110) | |||
| Kind of drive | / | Motorized spindle | |||
| ATC | Capacity | T | 24/32 | ||
| Feed | Rapid displacement along the X, Y, and Z axes | m/min | XY：50，Z：56 | ||
| Lead screw/guide rail | Specifications of X, Y, Z axis lead screws | mm | 28*16/12 | 28*16/12 | X：32*16/12 YZ：28*16/12 |
| Specifications of X, Y, and Z-axis guide rails | mm | Ball30# | |||
| Weight | Machine weight (approximately) | kg | 2450 | 2500 | 2600 |

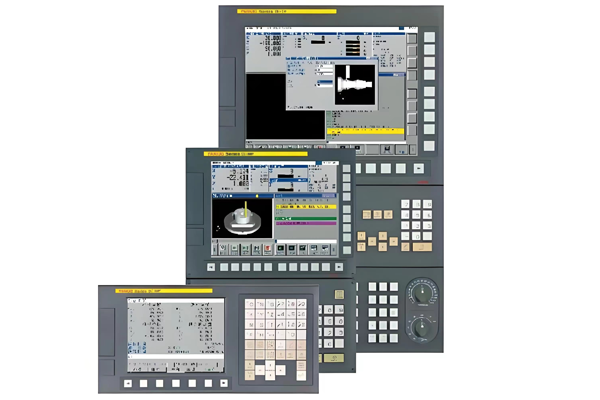

| Control System | |||||
| Name | SYNTEC | Mitsubishi | FANUC | ||
| System Model | SYNTEC 22MA | Mitsubishi M808 | FANUC 0I MF PLUS | ||
| Spindle motor | S08-L6-20B43CV0-5.5 Kw | SJ-DL5.5-20000 | αil2/20000 | ||
| Three-axis motor | XY axis：S08-AM11-40B-F3 Z axis：S008-AM18-40-F4 |
XY axis：HG154 Z axis：HG303 |
X axis：αis8/4000 Y axis：αis12/4000 Z axis：αis12/4000B |
||
